04 / 04 COLOR · A CLEAR START
Read signal.Judge the image. Check the signal.
Waveform, RGB Parade, Vectorscope, Histogram and CIE Chromaticity answer different questions. Relate their readings to the image, not to an ideal trace shape.
5 scope types · live signal · interpretation
AFTER / 320 × 180Loading the frame…
Normalized browser RGB 0–1; not IRE, nits or a legal-range test.
Educational RGB model, not Resolve’s processing math. Control values are specific to this demo. No HDR, Log, color-management or output certification is simulated.
UNDERSTAND THE MECHANISM
A scope answers a question; it does not diagnose the image for you.
A trace becomes useful when its axes, mode and relationship to the image are understood. The same reading can reflect a processing error, scene content or a deliberate creative choice.
Locate the part of the image first
On a waveform, left-to-right position relates to horizontal image position; vertical position represents the selected signal level, not the object’s height. A bright lamp near the bottom of the picture can produce a high trace. Objects in the same vertical image strip contribute above the same horizontal position.
Start with a recognisable object near the left or right edge. Compare a brightness change there with the corresponding part of the trace. Avoid interpreting the entire complex image at once: linking one object to one trace area gives you a firmer basis for diagnosis.
RememberHigh on a waveform means high signal level, not the top of the picture.
Compare corresponding areas in the channels
RGB Parade gives each channel its own distribution. A red sign naturally differs across red, green and blue. To judge an unwanted cast, identify an area intended to be neutral and compare that area across the three channels.
Do not use an arbitrary maximum peak as your reference: different objects can create the peaks in different channels. In mixed or coloured lighting, matching values everywhere is not the goal. First decide which scene colour should remain, then choose what to neutralise.
RememberDifferent whole-frame channel distributions do not alone prove a white-balance error.
Scale and mode are part of the measurement
Before comparing scope captures, check the scope type, signal component and displayed range. Do not transfer numbers between scales as though they use identical units. SDR and HDR checks need a defined technical context; one educational trace cannot replace delivery requirements.
Resolve 21 documents a display-range adjustment for HDR Parade. Expanding an area of interest changes how clearly it is shown, not necessarily the image itself. Read the new range boundaries before trying to force the trace back to its old height with Gain.
RememberKeep mode, scale and viewing conditions fixed for comparisons.
A trace does not prove that detail exists
A flat trace near a range boundary is a reason to inspect the area, not a final diagnosis. It could be a uniform object, a processing limit or information already absent from the source. Compare the picture and temporarily disable the suspected correction to locate the change.
Turning a white area grey by lowering its level does not prove recovery. Look for variation inside it—cloud structure, fabric or surface texture. Similarly, fitting a trace neatly within a scale does not prove clean masks, absence of flicker or matching adjacent shots.
RememberMeasurement checks signal properties; a conclusion still needs inspection of the image.
UNDERSTAND THE TOOL
Five ways to read the image.

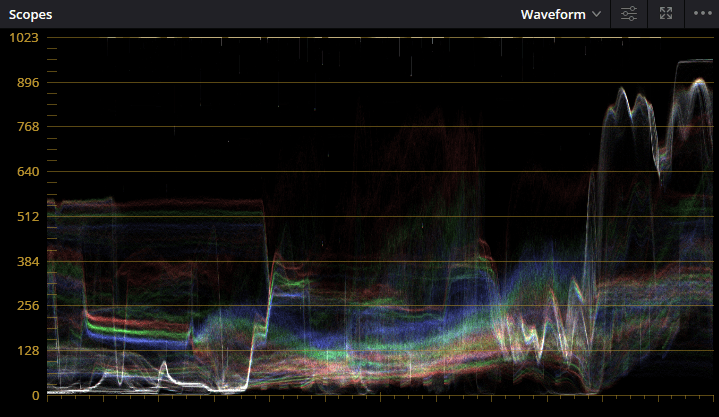

Waveform
Waveform shows where shadows, midtones and highlights sit across the full width of the frame. It is one of the most useful measurement tools on the Color page, because it helps you control overall exposure, spot crushed blacks, identify risky highlights and judge how cleanly the image is distributed through the tonal range.
- Check black and white points
- Understand the contrast shape
- See the overall exposure balance
RGB Parade
RGB Parade displays R, G and B separately while retaining horizontal frame position. Compare known neutral areas when checking balance. Do not force the three entire traces to match: colored objects and lighting naturally produce different channel values.
- Find channel imbalance
- Check neutral areas
- Refine white balance

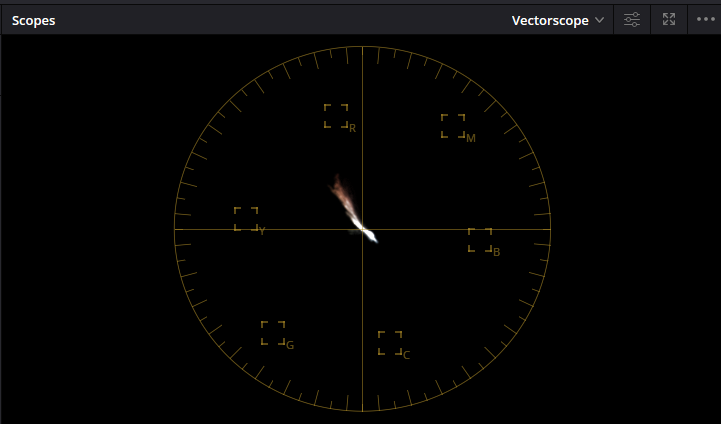

Vectorscope
The vectorscope shows the direction and magnitude of chroma, not brightness or object position. The skin-tone line is a hue-direction reference, not a universal skin-color recipe; lighting and creative intent still matter.
- Control saturation
- Check skin tone
- Spot hue drift

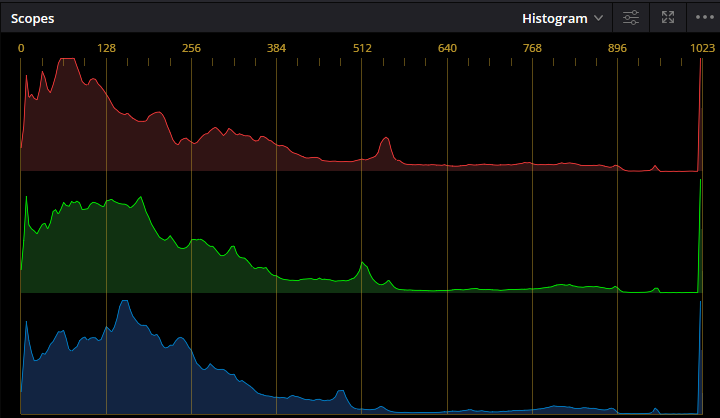

Histogram
A histogram counts pixels in each value range, separately for each channel in RGB mode. Values run horizontally; counts run vertically. Object position is discarded: different images can have the same histogram.
- Judge overall image density
- See where the signal clusters
- Quickly compare RGB channels
CIE Chromaticity
Resolve’s fifth scope type is the chromaticity diagram. It helps compare signal chromaticities with a selected gamut boundary. It is neither a waveform nor a brightness meter; interpretation depends on color management and delivery format.
- Check the target gamut
- Do not confuse with brightness
REASON THROUGH A CASE
Four cases that reveal the limits of scopes.
For each example, decide which conclusion is justified and which still needs evidence. The answer explains the next check.
The histograms match, but the pictures differ
Imagine a frame and a horizontally mirrored copy. Pixel values are the same; their positions differ.
Check your reasoning
The same histogram is expected: each value occurs the same number of times. This thought experiment shows why a distribution without positions cannot describe composition. A waveform’s horizontal relationship can reveal the swapped bright and dark regions.
The skin trace follows the line, but the face is too dark
Can a vectorscope alone confirm that the skin correction is finished?
Check your reasoning
No. Chroma direction does not check the face’s brightness or readability. Compare the face in the Viewer and an appropriate level scope. The skin-tone line does not prescribe universal brightness or saturation for every person, lighting condition and creative intention.
A large red object raises the red channel
A white object looks neutral, but the three whole-frame channel traces look different.
Check your reasoning
Do not align the entire channel traces merely for symmetry. Compare the neutral object and identify the sources of the other peaks. Globally neutralising a red object can damage both that object and the rest of the palette.
The trace is within range: is the file ready without other checks?
A paused frame stays within the chosen limits.
Check your reasoning
That is not enough. Check the whole shot, transitions and output-format settings. One frame’s scopes do not prove that motion is artifact-free or validate every delivery condition. Distinguish learning to read an instrument from full master-file acceptance.
UNDERSTAND THE TOOL
First the question. Then the scope.
- 01
Start with exposure
Open Waveform or RGB Parade first and understand where the shot holds its shadows, midtones and highlights. That gives you an objective base before any taste-driven decisions begin.
- 02
Then compare the channels
If the image feels too cool, too warm or muddy, do not guess by eye alone — check RGB Parade. It quickly shows which channel is pulling the balance and in which tonal area the drift is strongest.
- 03
Check saturation separately
Even when the picture already looks attractive, Vectorscope helps keep saturation within a sensible range. This matters especially for skin, brand colors, advertising and any shot where color needs to remain predictable.
- 04
Scopes confirm, they do not replace your eye
Scopes are not for robotic grading — they are there to validate your choices. The final decision is always made on the image itself, but the instruments protect you from hidden mistakes that may be missed on a single monitor.
GUIDED PRACTICE
Practice: predict the trace, then test your prediction.
State the expected change before moving a control. That turns the activity into learning to read an instrument instead of watching an attractive animation.
Begin with the lab in the hero, where the frame and traces are linked. Then repeat the experiment on a project copy in Resolve. The website demo does not reproduce all Resolve processing and is not a master-file acceptance instrument.
- 01
Change the overall level
DO THISSelect Waveform, move the level slightly, then switch to Histogram without changing the adjustment.
WHAT TO CHECKOne instrument keeps the horizontal image relationship; the other shows value distribution. Explain what information is lost when switching.
- 02
Remove saturation
DO THISReset the experiment, open Vectorscope and remove saturation. Then restore the original value.
WHAT TO CHECKIn the demo, the chroma trace approaches the centre. The monochrome image still contains bright and dark areas; the instrument does not tell you their brightness.
- 03
Shift the colour balance
DO THISReturn to the starting frame, select RGB Parade and change the R/B balance. Compare one recognisable area across channels.
WHAT TO CHECKRelate channel changes to the image rather than treating every separation as an error.
- 04
Inspect detail, not just trace height
DO THISOn a Resolve test clip, compare a bright area before and after lowering its level. Inspect its texture in the Viewer and its waveform distribution in turn.
WHAT TO CHECKA lower signal does not always mean more detail. Note what changed within the area, not only at its upper boundary.
- 05
Check the whole shot
DO THISPlay the clip continuously with the scope scale fixed, then recheck the beginning and end.
WHAT TO CHECKYou can assess whether the conclusion remains valid during motion, lighting changes and the arrival of a bright object.
Completion criterion
The experiment is complete when you can predict the direction of change, connect a reading to an image area and state at least one limitation of the chosen scope.
Signal measurement
Scopes answer different questions — there is no single 'main' scope
Waveform preserves the horizontal relationship to the frame and is useful for luminance, RGB Parade separates channels, Vectorscope shows chroma and hue direction, and Histogram quickly shows value distribution but loses spatial context. Choose a scope based on the question you are asking the image.
where levels sit across frame width
differences between R, G and B
hue + chroma without luminance
how many values occupy each range
Which scope to open for a specific task
| Task | Scope | What to look for | Limitation |
|---|---|---|---|
| Exposure / black-white range | Waveform | luminance distribution and clipping across frame width | does not tell you what a subject 'should' measure |
| White balance / RGB cast | RGB Parade | channel separation in neutral areas | coloured objects naturally separate channels — do not align everything |
| Saturation / skin direction | Vectorscope | chroma magnitude, hue and skin-tone region | does not show luminance or spatial location |
| Quick distribution overview | Histogram | mass of shadows, midtones, highlights and channels | very different images can have the same histogram |
| HDR mastering | HDR/Nit scopes | real/normalised HDR ranges and regions of interest | requires a correct HDR project/output setup |
A deliberate working method
- 01
1. Formulate the question
'Is the shot too dark?' points to Waveform. 'Is there a green cast?' points to Parade. 'Is skin too saturated?' points to Vectorscope. Do not open four scopes just because it looks professional.
- 02
2. Set type and scale
Make sure the scope is showing the needed component and a scale you understand. A scale or YRGB-mode mismatch can lead to incorrect interpretation of a correctly measured signal.
- 03
3. Measure before and after
A scope is not only for legal levels. It shows what a node actually did: channel balance, contrast expansion, hue rotation or chroma growth.
- 04
4. Final decision = image + measurement
No scope knows your creative intent. Use measurement for objective control and the Viewer/calibrated display for the visual decision.
WHEN SOMETHING LOOKS WRONG
Trace the cause.
01Parade channels do not align although a white object looks neutral+
Possible cause. the sample includes highlights, mixed-spectrum lighting or a non-neutral object
What to check. inspect a local area and scene context rather than aligning the whole frame
02Vectorscope shows a strong hue while the shot looks restrained+
Possible cause. a small vivid object creates a long chroma trace
What to check. match the trace to the image; use qualifier/highlight if needed
03The HDR scope is hard to read+
Possible cause. the display range is too wide for the region of interest
What to check. in Resolve 21 customise the HDR Parade range / Scale Display Range
FROM READING TO DOING
One clip.
Three checks.
Use a copy of your project or a test clip. These small checks turn the article into a repeatable workflow.
Back to the Color index ↗Self-check in Resolve; the site does not evaluate your work. Progress is not saved after reloading.
COMMON QUESTIONS
The details that matter.
What is the most useful scope for exposure?
Waveform is usually the first choice because it clearly shows how the image is distributed from black to white across the frame. RGB Parade is also helpful when channel balance matters at the same time.
Why use RGB Parade if I already have Waveform?
Waveform can display Y or color components depending on its mode. RGB Parade separates channels into individual panels, making comparison easier. Choose the mode and scale for the task; not every waveform is a luma-only display.
What does Vectorscope help with in practice?
It helps control saturation and hue direction. In practice, it is especially useful for keeping skin tones natural, spotting excessive saturation and checking whether the overall color bias is drifting.
Is Histogram necessary if I already use Waveform?
Not always as the main scope, but it is still useful. Histogram is a fast way to judge where most of the tonal information is concentrated and how the RGB channels are distributed in the shot.
Do scopes replace judging the image by eye?
No. Scopes validate and clarify the signal, but the image is still the final judge. A strong workflow uses both: visual perception and objective measurement together.
