Turn on one Estimated Fringes guide at a time. Tune Scale before Edge, and never approve the shot while the diagnostic guide is still on.
Independent deterministic teaching proxy. It illustrates pair isolation, radial reference, Scale/Edge separation and diagnostic guide behavior. Slider ranges and rendering are illustrative and do not reproduce Blackmagic’s proprietary OFX math.
Manual CA repair with native Resolve interface captures.
3 COLOR PAIRS · 4 CAPTURES01THE OPTICAL ERROR
Colored rims are a geometry problem before they are a color problem.
The useful mental model is radial channel misalignment: isolate one pair, align the broad scale error, then refine the edge behavior.
Identify the color pair first
Chromatic aberration appears as colored fringe on high-contrast edges, but adjusting all pairs at once makes causality hard to read. Work through Red/Cyan, Green/Purple and Blue/Yellow one at a time, using the corresponding Estimated Fringes view as a diagnostic isolation tool.
Scale and Edge solve different geometric errors
Scale is the primary manual control for aligning color components; Edge exists separately because residual error can vary with image radius as the lens behaves differently toward its edges. In practice: establish the broad alignment with Scale, then use Edge only if residual fringe changes toward the periphery.
Lens Center defines the radial reference
After cropping, reframing or re-rendering, the current frame center may no longer coincide with the optical center of the original lens. The same Scale/Edge values can then behave asymmetrically across corners. Correct Lens Center X/Y before fine-tuning the color pairs rather than compensating for a wrong center with extra Edge.
The gray alignment guide exists to isolate a specific fringe and make a weak error easier to read with Balance/Brightness. Turn the guide off after tuning: the final decision must be made on the real image across several corners, at a useful Viewer zoom, without diagnostic coloring.
02THE ACTUAL PANEL
Diagnosis and correction are deliberately separated.
Four native captures document Advanced Options, Estimation Options and Aberration Correction. Captured numbers are interface evidence, not recommended presets or claimed parameter ranges.
ADVANCED OPTIONS
Establish the lens geometry first
- Lens Center X
Horizontal coordinate of the optical center. The manual explicitly calls out offsetting the center for reframed or re-rendered shots; the center can also be repositioned with the Viewer on-screen control. The captured 0.500 value only documents a centered UI state.
CheckIf correction improves one side of the frame while worsening the opposite side, verify Lens Center before adding more Edge.
- Lens Center Y
Vertical coordinate of the same optical reference. X and Y form one geometric setting; after crop, pan or resize, the original optical center may sit above or below the geometric center of the current frame.
CheckInspect at least two diagonally opposite corners: a locally perfect correction near one edge does not prove the center is correct.
- Stronger Correction
An additional mode for problem shots. The manual describes it as showing locations of image features that resemble fringing. It is not a generic “High quality” switch or universal strength boost, so use it as a diagnostic A/B only when the normal mode does not expose the problem clearly.
CheckDo not leave the checkbox enabled merely because “Stronger” sounds better. Compare fringe readability and final alignment on the same edge.
ESTIMATION OPTIONS
Make the fringe readable without grading the output
- Red / Cyan Balance
Adjusts the incoming diagnostic balance between Red and Cyan so difficult fringe in that pair is easier to identify in Estimated Fringes. This control is not intended as a final-output grading adjustment.
CheckIf the control appears disabled, enable Red/Cyan Show Estimated Fringes first. Return to the real image after correction.
- Green / Purple Balance
Diagnostic balance for Green/Purple fringe. It helps separate a weak color rim from texture and luminance edges inside the guide view, but does not set the correction amount.
CheckDo not try to “remove” fringe with Balance alone. The actual correction is made with Green/Purple Scale and, if needed, Edge.
- Blue / Yellow Balance
Diagnostic balance for the Blue/Yellow pair. It is useful when fringe is subtle or disappears into a colored subject, but it serves only to read the Estimated Fringes view.
CheckJudge the pair on several high-contrast edges: a colored object can hide or visually exaggerate one particular fringe.
- Brightness
Magnifies the displayed fringe indicators in the diagnostic view. The captured panel shows 6.00, but that is capture state rather than a target value. Brightness helps reveal the guide and should not be used to judge final image contrast.
CheckAn over-bright guide can make a minor error look dramatic. Disable the guide and inspect the real image after tuning.
ABERRATION CORRECTION
Correct each color pair independently
- Red / Cyan Scale
Primary manual alignment for Red/Cyan fringing. Change it in small steps while watching a high-contrast edge toward the frame periphery; the goal is to align color components rather than merely desaturate the visible rim.
CheckIf one edge improves while the opposite edge worsens, suspect Lens Center or non-uniform radial behavior rather than endlessly pushing Scale.
- Red / Cyan Edge
Compensates for residual Red/Cyan fringing differences associated with curvature toward the lens edges. It is a refinement after Scale, not a second generic Strength control.
CheckInspect several radii and corners. If the error is uniform across the frame, refine Scale first; Edge is for radial variation.
- Red / Cyan · Show Estimated Fringes
Shows only the estimated Red/Cyan fringes over gray and activates Estimation Options at the same time. It is an alignment guide for tuning, not an alternative delivery output mode.
CheckAfter Scale/Edge tuning, disable the checkbox and compare the actual image before/after.
- Green / Purple Scale
Independent Scale for the Green/Purple pair. The separation matters because optical error can differ by wavelength, so one pair’s value should not be mechanically copied to another.
CheckChange one pair at a time and keep track of the specific fringe you are correcting.
- Green / Purple Edge
Radial Green/Purple refinement after the main Scale adjustment. Use it only when residual fringe changes systematically toward the edges, otherwise extra compensation can create inverse fringing.
CheckCompare the correction near the center and toward the edge at the same Viewer zoom.
- Green / Purple · Show Estimated Fringes
Isolates estimated Green/Purple fringe over a gray background and enables diagnostic Balance/Brightness. Use it for identification and alignment, then turn it off.
CheckDo not judge final image quality in the diagnostic view; its job is only to expose the error.
- Blue / Yellow Scale
Independent Scale for the Blue/Yellow pair. Like the other Scale controls, it manually aligns color components rather than performing a general saturation or hue correction.
CheckOn blue/yellow subject detail it is easy to confuse chromatic aberration with a genuine colored edge. Inspect several edges.
- Blue / Yellow Edge
Edge refinement for Blue/Yellow radial variation. Adjust it after Scale and only when residual error remains toward the periphery.
CheckStop when fringe is minimized across several areas, not when one selected pixel looks perfect.
- Blue / Yellow · Show Estimated Fringes
Diagnostic alignment guide for Blue/Yellow. It activates Estimation Options and helps reveal that specific pair over a gray background.
CheckDisable every Show Estimated Fringes option before final QC and return to the normal output.

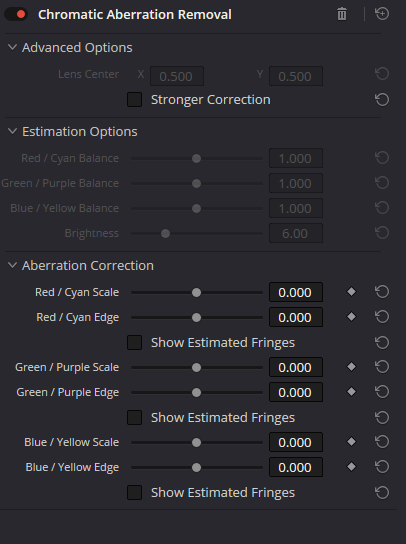

The full capture shows Lens Center X/Y at 0.500, Balance controls at 1.000, Brightness 6.00, and every Scale/Edge at 0.000. Those values document one untouched panel state only. Tune the installed effect against the actual lens error in your shot.
03PAIR-FIRST ALIGNMENT
One pair. One cause. One verification pass.
The efficient path is edge → pair → guide → Scale → Edge → guide-off QC. A reframed shot adds Lens Center before fine correction.
Expose the fringe
Enable Show Estimated Fringes for that pair. Use Balance and Brightness only if needed to reveal a weak rim; those controls are diagnostic, not the final correction.
Teaching workflow, not a literal Resolve node graph. The useful order is pair → guide → Scale → Edge → guide-off QC, with Lens Center corrected before fine tuning when a shot has been reframed.
Related tools: Lens Distortion ↗ · Chromatic Adaptation ↗ · Camera RAW ↗
04BUILD IT IN RESOLVE
Four exercises that separate the common failure modes.
Use your own lens footage. These are diagnostic procedures, not one-click recipes; exact values depend on the lens, crop and image content.
Color fringe on architecture
Remove lateral chromatic aberration from high-contrast verticals near the frame edge without creating inverse fringe.
PrepareChoose a frame with fine bright/dark geometry near the periphery and use a large Viewer zoom.
- 01
Identify the dominant pair on the real edge and enable only its Show Estimated Fringes view.
- 02
If the fringe is hard to read, tune the corresponding Balance and Brightness for diagnosis only.
- 03
Adjust Scale in very small steps for the best broad alignment, then test Edge only if the residual changes toward the periphery.
- 04
Disable the guide and inspect at least two corners plus the center on the real image.
Colored fringe is substantially reduced across several edges, fine luminance geometry stays sharp, and no new opposite-colored rim appears.
Reframed or cropped shot
Correct asymmetric behavior when the optical center no longer matches the center of the current frame.
PrepareUse a cropped or reframed shot where similar fringe is visible in two opposite corners.
- 01
Remove unnecessary Scale/Edge changes and compare the error left/right or diagonally.
- 02
Move Lens Center X/Y until radial behavior is more symmetric around the actual optical center.
- 03
Only then tune the pair Scale, followed by Edge if needed.
- 04
Inspect all four corners without the guide and compare bypass.
The same pair corrects more consistently across the frame; one corner no longer becomes clean at the expense of the opposite corner.
Subtle fringe that is hard to read
Use Estimation Options as measurement aids without turning them into part of the final look.
PrepareChoose a high-contrast edge where CA is suspected but the colored rim blends into texture.
- 01
Enable Show Estimated Fringes for one likely pair.
- 02
Tune Balance and Brightness only until the guide becomes readable.
- 03
Make the Scale/Edge correction using alignment rather than the appearance of the gray preview.
- 04
Turn off the guide and decide whether the actual image truly improved.
The diagnostic view helps localize the problem while the final image receives no unnecessary contrast/color shift from Estimation Options.
Shot with multiple fringe families
Correct multiple color pairs while preserving causality and avoiding chaotic control chasing.
PrepareChoose a difficult shot with several high-contrast edges and different colored rims.
- 01
Start with the clearest pair and bring its Scale/Edge to an acceptable state.
- 02
Disable its guide, then move to the second pair without copying values.
- 03
After each pair, compare bypass and check for newly introduced inverse fringe.
- 04
After the third pair, sweep all corners and, if necessary, back off the most aggressive correction slightly.
Each color pair has a clear contribution; the result holds across several frame areas rather than depending on one flattering edge.
05CHOOSE THE RIGHT TOOL
Not every colored or soft edge is chromatic aberration.
| FX | What it changes | Use it when |
|---|---|---|
| Chromatic Aberration Removal | Manual Red/Cyan, Green/Purple and Blue/Yellow fringe alignment with a diagnostic guide. | Lateral lens CA on high-contrast edges, especially toward the frame periphery. |
| Lens Distortion ↗ | Geometric correction or distortion of image shape rather than channel-pair fringe alignment. | Barrel/pincushion and other lens geometry problems where shape, not colored fringing, is the issue. |
| Chromatic Adaptation ↗ | Chromatic/white-point adaptation rather than lens-fringe repair. | When white-point or color adaptation is needed and object edges are already geometrically aligned. |
| Dehaze ↗ | Image-wide haze and contrast treatment. | When the problem is atmospheric haze or low contrast rather than RGB fringe around edges. |
| Sharpen ↗ | Raises local sharpness and edge contrast but does not realign separated color components. | For detail enhancement after optical defects are handled; sharpening over CA can make the fringe more obvious. |
06DIAGNOSE THE FAILURE
A wrong center, wrong pair and overcorrection look different.
Classify the symptom before moving more sliders. The diagnostic guide is useful precisely because it separates identification from correction.
01Estimation Options are gray and unavailable+
Likely cause: No corresponding Show Estimated Fringes view is enabled. According to the manual, these controls activate only with the diagnostic guide.
Fix: Enable Show Estimated Fringes for the relevant color pair, tune Balance/Brightness, then disable the guide after correction.
02One corner improves while the opposite corner gets worse+
Likely cause: The optical center may no longer match the current frame center after a reframe/crop, or radial variation is being handled with Scale alone.
Fix: Recheck Lens Center X/Y across several corners first. Then tune Scale and use Edge only for remaining radial variation.
03Correction creates an opposite-colored fringe+
Likely cause: Scale or Edge has passed the alignment point, turning reduced channel separation into overcorrection.
Fix: Back off to a smaller adjustment and compare several edges. Do not perfect one pixel at the expense of the rest of the frame.
04Balance/Brightness seem to change the “image,” but the result is different after the guide is disabled+
Likely cause: The diagnostic Estimated Fringes view is being judged as final output. Estimation Options exist only to highlight and identify fringe.
Fix: Use the guide for alignment, then disable it and make the decision on the normal image.
05Scale helps, but CA remains near the outer edge+
Likely cause: Residual error varies with image radius because of lens-edge curvature; a broad Scale adjustment is not enough.
Fix: Keep the established Scale as the base and add small Edge adjustments while checking center and periphery together.
06It is unclear which of the three pairs to correct first+
Likely cause: On real colored footage, fringe from different wavelengths can overlap texture and genuine subject colors.
Fix: Toggle Show Estimated Fringes one pair at a time and start with the guide that most clearly matches the problematic rim. Leave the other pairs untouched until the first is finished.
07BEFORE DELIVERY
Approve the real image, not the alignment guide.
Final QC is multi-edge and guide-off: the correction should reduce the optical error across the frame without introducing inverse fringe.
08FAQ
Practical Chromatic Aberration Removal questions.
What exactly does Chromatic Aberration Removal fix?
Slight colored fringing caused by lens chromatic aberration. The effect manually separates correction into Red/Cyan, Green/Purple and Blue/Yellow pairs with individual Scale/Edge controls plus an Estimated Fringes diagnostic view.
Why are Estimation Options unavailable?
They activate only when one of the Show Estimated Fringes views is enabled. The manual states that Estimation Options are solely for highlighting and identifying areas of fringing and do not directly affect final output.
How is Scale different from Edge?
Scale is the primary alignment control for the selected color pair. Edge compensates for fringing differences associated with curvature toward the lens edges. The practical order is therefore Scale first, Edge only for residual radial error.
When should Lens Center be changed?
When the shot was reframed, re-rendered or cropped so the optical center of the original lens no longer matches the current image center. A strong clue is correction that helps one corner while worsening the opposite corner.
Should Stronger Correction always be enabled?
No. It is an Advanced option for problem shots, not a mandatory quality switch. Use it as an A/B when the normal mode does not expose fringe-like features clearly enough, and keep it only when it provides a real benefit.
Why not simply desaturate the fringe?
Because lateral CA is primarily a spatial misalignment of color components. Desaturation may hide the symptom but does not realign edges. Chromatic Aberration Removal is designed to manually align the relevant color pairs.
Sources and boundaries
The page separates interface evidence from the teaching model. Control names and visible values come from four native Resolve captures in the project archive; control roles were cross-checked against the Resolve 21 Revival manual. The interactive lens-fringe lab is an independent deterministic proxy and does not claim Blackmagic’s exact OFX math, parameter mapping or renderer.
Verify edition availability and any UI differences in the Resolve build you actually use. The exercises here are explicit training procedures around documented controls and captured UI states; they were not certified by a live Resolve render during this site-only update.
