RESOLVE FX STYLIZE · DAVINCI RESOLVE 21 STUDIO
Watercolor.
Think in color.
Paint with light.
Build a watercolor look through softly blended color regions — not by piling on blur. Understand exactly what Channels, Show Gradient, Smoothness and Global Blend do, with genuine Resolve screenshots and a working educational wash model.
Luminance / RGB
Smoothness
Gradient + Blend
Switch the COLOR BOUNDARY CHART to compare RGB and Luminance Only. Enable Show Gradient to examine regions; it is a diagnostic, not the finished watercolor.
Preparing the sample…
Independent edge-aware color pooling. Controls are normalized educational scales, not OFX ranges; boundaries, alpha, motion and final color management in DaVinci Resolve can differ.
4 original inspector PNGs · 4 actual controls
4 exercises01COLOR BEFORE FILTER
A wash is more than a blur.
Watercolor is documented as a variation on Abstraction. The idea is to organize image information into softly blended pools of color, not to emulate wet paper or physical pigment exactly.
From image to regions
The effect emphasizes large, softly blended color regions rather than every fine texture in the source. Channels selects the signal used to derive that structure.
Smoothness changes the scale
With a restrained setting, washes still contain local detail. Raising Smoothness makes fine image features merge into larger, softer painted areas.
Diagnostics and mixing are separate
Show Gradient visualizes boundaries; it is not another watercolor style. Global Blend restores some input contribution without redefining the underlying structure.
Blackmagic reference: Resolve 21 · Resolve FX Stylize · Watercolor ↗
02VERIFIED INSPECTOR · EXACT LABELS
Four controls. Four different jobs.

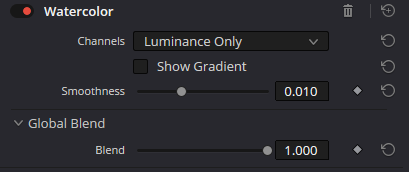

Four archived PNGs anchor the explanations. The visible 0.010 Smoothness is a captured value, not the documented range or a recommendation; the browser scale is deliberately normalized.
01 / How areas are derived
Channels: which signal defines the wash
- Channels
There are two documented choices: Luminance Only and RGB. They determine which part of the input signal informs the smoothed color regions. Luminance Only derives structure from brightness; RGB considers the color channels. The choice does not mean “output black and white” or “boost saturation.”
TRY ITUse two adjacent colors with similar brightness. With Smoothness and Blend unchanged, switch channels and compare the boundary shapes, areas of color and fine chromatic transitions rather than saturation alone.
02 / Diagnostic visualization
Show Gradient reveals boundaries, not the final artwork
- Show Gradient
A diagnostic checkbox that displays the boundaries defining the smooth-color areas for the current Smoothness. It helps explain why some fine features survive while others merge into broad washes. Turn this visualization off when delivering the intended painted result.
TRY ITEnable Show Gradient and sweep Smoothness from low to high on the same shot. Track which structures merge or vanish as the zones get broader, rather than treating the preview as a separate artistic render.
03 / Scale of color washes
Smoothness trades fine detail for broad pools
- Smoothness
Controls simplification. Lower settings retain more small image detail; higher settings consolidate it into larger, softer pools of color. This is not simply a Gaussian Blur radius: the objective is a painterly organization of color regions. Assess the true scale in Resolve, not by copying a browser-demo number.
TRY ITOn a portrait watch eyelashes, lips and hair contours; on landscapes watch foliage and small architecture. Stop before a necessary silhouette collapses, then consider Global Blend for a subtler treatment.
04 / Final contribution
Global Blend controls how much of the treatment remains
- Global Blend
The OFX-wide mix between this effect’s processed result and the original node input. Reducing Blend brings back some source detail, but does not correct a poor Channels decision or overly coarse wash structure. The original capture shows 1.000; that is not a universal optimum.
TRY ITFirst shape a deliberate painted look at full contribution, then lower the blend while comparing adjacent versions. Recheck skin and motion: Blend is a finishing decision, not a substitute for setting Smoothness.
03WORK WITH THE IMAGE
One filter. Three very different outcomes.
Watercolor can soften a portrait, reorganize a landscape or create a bold editorial illustration. Their acceptance criteria are not interchangeable.
PORTRAIT WASH
Keep the subject recognizable
Simplify background texture while retaining the eyes, lips and face contours. A restrained watercolor treatment can serve a portrait better than undifferentiated pools.
Check: view at 100% and watch eyes and hair during actual motion.
LANDSCAPE WASH
Landscape color fields
Forests, skies and architecture can benefit from broad washes if the horizon, tree silhouettes and important buildings stay legible.
Check: compare foliage and rooftop contours before and after.
EDITORIAL ILLUSTRATION
Expressive editorial graphic
Titles and editorial graphics can tolerate stronger simplification and color pooling. Overlay small typography after the effect, never before it.
Check: make sure labels, logos and fine lines are not passing through the OFX.
Watch a real clip for motion consistency; the illustrative browser calculation is frame-based and intentionally does not make claims about Blackmagic temporal processing.
04BUILD IT IN THE COLOR PAGE
Separate the grade from the painting.
On the Color page, add a serial node after basic balance, find Watercolor in Resolve FX Stylize, and apply it to that node. Use a Power Window only if the wash needs to be local.
Watercolor node
Apply Watercolor from Resolve FX Stylize to this serial node. Compare Channels, adjust Smoothness, then finish with Global Blend.
The illustration explains a serial Color workflow; it is not a screenshot or exported node graph. The dashed element is a Power Window within the effect node, not a physical connection to a missing OFX input.
Detailed guides: Color nodes and signal flow ↗ · Power Window / Tracker ↗
05WORK THROUGH FOUR SCENES
Learn it by checking the outcome.
These are reproducible exercises, not slider presets. Compare the same image, track key edges in motion and always review the rendered output.
Portrait as illustration
Retain expression and color while simplifying fine texture.
PrepareA close-up with visible hair contours against a quiet background.
- 01
Place Watercolor on its own serial node after primary balancing.
- 02
Begin with Luminance Only and low Smoothness; grab a Still for comparison.
- 03
Switch to RGB without changing other controls; inspect skin/background boundaries.
- 04
Pick the mode, raise Smoothness only as far as needed, then reduce Global Blend if appropriate.
The face remains recognizable; skin does not look plastic and hair motion remains legible.
If eyes or lips become unreadable, reduce Smoothness first rather than trying to rescue everything using Blend.
Watercolor landscape
Create broad color areas while retaining essential silhouettes.
PrepareA landscape with sky, trees and distant architecture or water.
- 01
Balance exposure and color in the preceding node.
- 02
Choose RGB and gradually raise Smoothness as smaller features merge.
- 03
Temporarily enable Show Gradient to examine the wash boundaries.
- 04
Disable Show Gradient, compare at Fit and 100%, then review a short exported clip.
The sky is softly pooled while the horizon and key architectural silhouettes remain intact.
If foliage breaks into unhelpful bright patches, compare RGB with Luminance Only and lower Smoothness.
Boundary diagnosis
Understand which details are being removed by the filter.
PrepareA frame containing fine lines, fabric texture and a few broad color regions.
- 01
Save a source Still and enable Show Gradient on the effect.
- 02
Compare Luminance Only and RGB while holding Smoothness constant.
- 03
Raise Smoothness gradually and watch local boundary regions merge.
- 04
Turn Show Gradient off and evaluate the intended result; this diagnostic view is not the watercolor delivery.
You can identify which fine features disappear and which channel mode retains an important boundary.
Do not confuse the brightness of the diagnostic image with paint strength or substitute it for inspecting the finished frame.
Motion-consistent wash
Make sure the treatment does not produce distracting frame-to-frame variation.
PrepareA multi-second pan, hand movement or foliage shifting in the wind.
- 01
Choose a detail-rich shot and add Watercolor after primary corrections.
- 02
Set Channels and Smoothness on a still frame, then play through the full action.
- 03
Watch secondary textures, boundaries and low-light areas, not just the subject.
- 04
If textures flicker, try less Smoothness and a reduced Global Blend; verify on an export.
Colored wash regions move with the scene rather than visibly crawling or flickering.
If edges pulse, Show Gradient may help locate unstable regions, but turning on diagnostics does not fix the issue.
06PICK THE RIGHT TOOL
Watercolor, Abstraction and Pencil Sketch are not synonyms.
Pick the treatment based on the image structure you want to emphasize, not on the artistic name of the filter.
| Resolve FX | Result | Best for |
|---|---|---|
| Watercolor | Soft color washes controlled by Channels and Smoothness. | Use for painterly, smoothly blended pools of color. |
| Abstraction ↗ | A different simplification tool with iterations, quantization and optional edges. | Use when you want sharper graphic regions, quantization or outlines. |
| Pencil Sketch ↗ | Drawn-line, stroke and pencil texture stylization. | Use for a drawn pencil-line look rather than soft color washes. |
| Box Blur ↗ | Conventional neighbor averaging; it does not deliberately create painted regions. | Use for signal blur rather than pictorial simplification. |
07SYMPTOM / REASON / FIX
Diagnose the wash, not just the sliders.
01The image looks simply blurry+
Check for a separate Blur node doing unintended work. On the same frame, distinguish Smoothness-created color pooling from simply smearing detail with a blur filter.
02Colored boundaries look unnatural+
Compare Luminance Only and RGB with identical Smoothness. Adjacent colors of similar brightness can reveal a larger difference than an otherwise uniform sky.
03Eyes, hands or small architecture vanish+
Reduce Smoothness and inspect at 100% and in motion. If only the background needs painting, use a tracked Power Window; Global Blend alone may not reconstruct the desired structure.
04I see technical boundaries rather than color washes+
Show Gradient is probably enabled. It is a diagnostic boundary view rather than a finished color treatment; turn it off after investigating the region structure.
05The treatment is hardly visible+
Verify that the effect is enabled, Global Blend is not zero, and Show Gradient is off for the artistic view. Raise Smoothness on a detailed image area while comparing source and output.
06Paint texture crawls from frame to frame+
Watch source and export in motion. Reduce excessive Smoothness, compare Channels and inspect noise, compression and exposure jumps; fine source variation can destabilize the pooled boundaries.
07The still looks good but export is degraded+
Inspect the Viewer resolution, 100% details, color management, render cache and export settings. The decisive check is a short delivered render played at speed.
Character over filter strength
A convincing wash starts with coherent color shapes and well-exposed footage. If the story becomes illegible, the treatment has gone too far.
The boundaries matter
Show Gradient helps locate region boundaries. Choose Channels based on the current shot rather than habitually selecting RGB.
Motion is the real test
A painterly still may flicker across detailed surfaces in motion. Favor a temporally convincing export over a single striking screenshot.
08BEFORE YOU EXPORT
Eight checks before calling it finished.
This checklist records your own review locally in the browser. It does not examine the Resolve timeline or validate a render automatically.
09FREQUENT MISUNDERSTANDINGS
Seven answers without made-up controls.
Are Watercolor and Abstraction the same effect?
No. The manual describes Watercolor as a variation on Abstraction, but Watercolor emphasizes softly blended color washes. Abstraction offers distinct simplification, quantization and edge controls.
Does Luminance Only output a monochrome image?
No. It selects the signal used to derive the treatment, not a black-and-white output switch. Compare boundaries between colors of similar luminance to understand the difference from RGB.
Is Show Gradient a finished visual style?
You could creatively repurpose almost any diagnostic output, but the parameter exists to reveal smoothing boundaries. For the intended watercolor look, turn it off and evaluate the colored result.
Why is the screenshot Smoothness 0.010, but the demo uses 0–100%?
0.010 is a real value visible in the archived inspector capture. The browser uses a normalized control for an independent educational filter; its scale is not the Resolve OFX range or a Resolve preset.
Can Global Blend fix overly aggressive smoothness?
Partly: it restores a fraction of the source signal. However, a mixed result is not the same as correctly built soft color regions. Set Smoothness first and Blend afterward.
Is the interactive lab pixel-perfect to Resolve?
No. This is an independent CPU demonstration of color-region simplification and boundary diagnostics. It does not run Blackmagic’s algorithm, receive live frames from Resolve, mirror OFX scales or certify the GPU render.
Does the free edition include Watercolor?
The Resolve 21 manual labels Watercolor as Studio Version Only. Confirm availability and actual behavior in your installed edition.
Sources, screenshots and verification limits
The four real PNGs are preserved exactly as found in the uploaded site archive. Interface wording and the visible menu choices are based on those pixels; the documented behavior and Studio requirement were cross-checked against the Resolve 21 manual. The guide does not claim a live Resolve verification.
The lab computes a simplified, deterministic, CPU-only color-region model on a sample frame. Its 0–100% controls, Show Gradient representation and channel interpretation are instructional, not claimed replicas of hidden OFX internals, parameters or GPU output.
