FilmLookCreator

Film Look Creator is the Studio-only integrated Resolve FX Film Emulation effect, not classic Fusion Grain and not a precise reproduction of a named commercial film emulsion. Blackmagic describes a built-in film response with many internally tuned parameters that are not exposed as editable sliders.

Work from the actual input signal. In RCM/ACES, Use Timeline may describe the scene-referred pixels correctly; in manual DaVinci YRGB or after an upstream CST/LUT, the pixels at the effect input can differ from the metadata of the original camera clip.

Input and Output Color Space select primaries/gamut while Input and Output Gamma set transfer functions independently. Resolve 21 explicitly cautions that switching Color Space Overrides alone is not an automatic tone-mapping operation.

Default No Effects retains the baked-in Blackmagic base look and turns additional modules off. Clean Slate disables that base response. Neither mode establishes pixel-for-pixel neutrality without an actual scopes comparison including the color pipeline.

Film Look Blend modifies the underlying Blackmagic film response before secondary color changes. Color Blend controls the larger creative color stages and Split Tone. Effects Blend mixes spatial physical modules. A final overall Global Blend, where available in general effect settings, is distinct from all three.

Core Look lists Cinematic, Rochester, Akasaka, Elated, Vintage and Aurora in the archived menu. These are aesthetic starting points. Keep exposure and the blend stages stable and evaluate faces, grayscale, specular highlights and deep shadows when comparing.

Color Settings include Exposure, Contrast, Highlights, Highlight Rolloff, Fade, Fade Rolloff, White Balance, Tint, Subtractive Sat, Richness and Bleach Bypass. Highlights/Fade control tonal endpoints; their Rolloff counterparts tune transition shape, not spatial feathering.

Split Tone is part of the creative color transform and can be represented in an RGB LUT. Vignette, Halation and Bloom are spatial processes: corner darkening, chromatic glow near contrast edges and broader soft spill around bright objects. A 3D LUT cannot contain them.

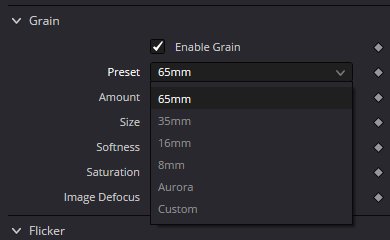

The built-in Grain module exposes simplified Preset, Amount, Size, Softness, Saturation and Image Defocus controls; it is not the same as a dedicated Resolve FX Film Grain node. Establish one grain owner and evaluate its actual delivery codec performance.

Flicker and Gate Weave must be evaluated across consecutive frames, not a still. Film Gate changes picture boundaries and may expose unexpected edges if source footage does not fill the raster. Check titles, margins, crop and alpha carefully.

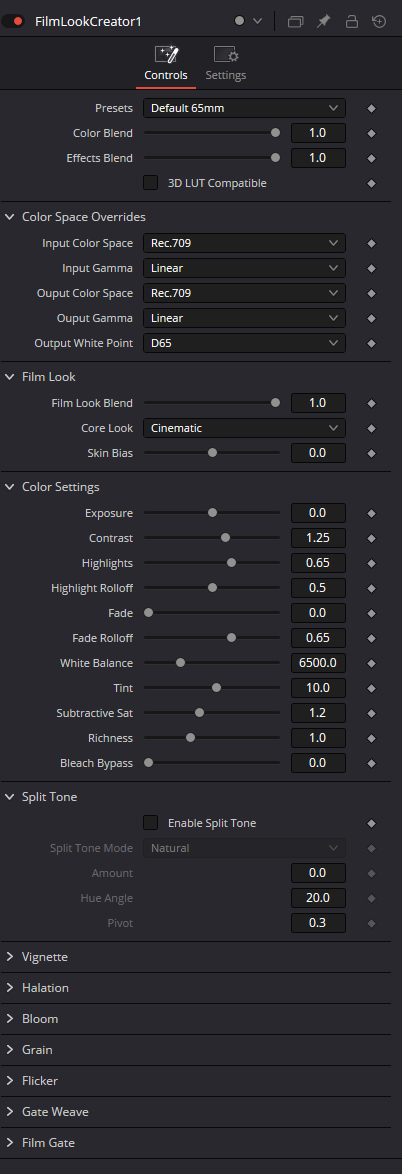

The nine supplied PNGs show Inspector controls and dropdowns, not physical Fusion Flow sockets. The article models only an ordinary 2D image Input and Output. For selective styling, branch clean and treated images into Merge and mask Merge.EffectMask with Rectangle.

Four bilingual typed lessons and the Inspector descriptions are static editorial artifacts. Native Studio OFX behavior, actual sockets, pixel response, alpha, temporal animation and exported LUT parity remain pending in-app QA.
