Source
Chooses which input branch is active.
← Fusion node reference
USD / 3DIntermediate
uSwitch
USD branch switcher
Selects one of several USD stage inputs by source index, making scene variants and branch comparisons easy to manage.
uSwitch
DaVinci Resolve · Fusion
uSwitch is a routing node for USD stages. It can expose multiple named inputs and choose which branch is active, which is useful for asset variants, lighting alternatives, layout versions and technical A/B comparisons.
Overview
What uSwitch does
uSwitch is a routing node for USD stages. It can expose multiple named inputs and choose which branch is active, which is useful for asset variants, lighting alternatives, layout versions and technical A/B comparisons.
Mental model
Think of uSwitch as a selector on the stage graph: several complete USD branches can wait upstream, but only the chosen Source continues downstream.
Common uses
Switch between asset variants
Compare lighting rigs
Select layout versions
Route alternate USD stages
Build controllable scene templates
Flow anatomy
Inputs & outputs
The port structure shows how this node fits into a Fusion graph.
Input0
Source image for the operation.
Input1
Source image for the operation.
uSwitch
Fusion node
Stage Output
Updated USD/3D stage for further composition, rendering or export.
Inspector
Important parameters
Start with these controls before reaching for more complicated workarounds.

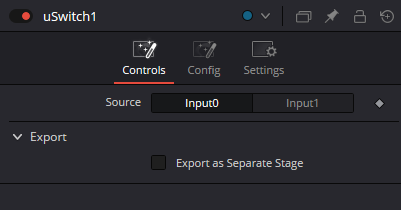

Export as Separate Stage
Packages the selected branch as its own USD stage.

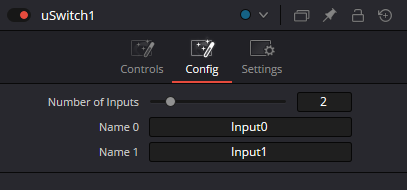

Number of Inputs
Controls how many stage inputs the node exposes.
Name 0 / Name 1
Labels inputs for readable routing.
Config
Manages input configuration.
Practical setup
A reliable workflow
- 1
Create the alternate USD branches.
- 2
Set the number of inputs on uSwitch.
- 3
Give each input a meaningful name.
- 4
Connect the alternatives.
- 5
Change Source to validate every branch.
- 6
Send the selected stage to uRenderer or uExport.
Typical node chain
USD Branch A/B/C→
uSwitch→
uRenderer
Examples
Where this node fits in real work
Asset variant switch
Choose between two imported USD assets.
uLoader A + uLoader BuSwitchuRenderer
Lighting A/B
Compare two complete lighting branches.
Lighting Rig A + Lighting Rig BuSwitchuRenderer
Troubleshooting
Common mistakes
Leaving generic input names in a complex graph.
Assuming uSwitch blends branches; it selects one branch.
Connecting branches with incompatible scene assumptions and expecting a seamless switch.
Production notes
Practical tips
Name inputs by creative intent, not numbers.
Use uSwitch for look-development comparisons before committing to one branch.
Keep shared downstream rendering identical for fair A/B tests.
