Sharpen

Blackmagic describes Resolve FX Sharpen as a more detailed sharpening method than the traditional Blur-palette sharpen: the image is separated into underlying structure, fine-scale detail, medium-scale detail and large-scale detail, with separate control over the three adjustable detail bands.

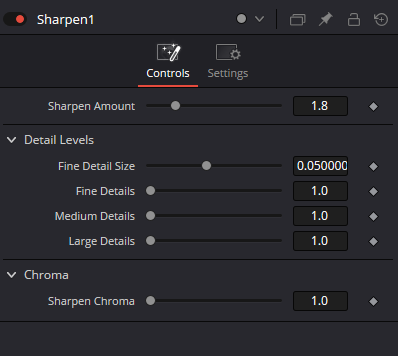

The captured Resolve Inspector used by this article exposes six editable controls: Sharpen Amount, Fine Detail Size, Fine Details, Medium Details, Large Details and Sharpen Chroma. Detail Levels and Chroma are section headers, not separate numeric parameters.

Sharpen Amount is the global effect level. It establishes the overall sharpening contribution while the Detail Levels refine which spatial structures receive more or less emphasis. Excessive Amount can create a digital look even when the individual scale controls are balanced.

Blackmagic documents 0 as no sharpening and historically lists 1.800 as the default Sharpen Amount. The captured Inspector also shows 1.8. A default is not a universal production recommendation; judge the source at its actual delivery size.

Fine Detail Size defines the threshold of what counts as fine detail and also changes which structures fall into the Medium and Large bands. It is therefore more than a simple fine-sharpen radius: changing it repartitions the scale analysis.

After changing Fine Detail Size, reassess Fine, Medium and Large together. Those controls do not represent completely isolated frequency buckets because the threshold shifts the boundary between structure classes.

Fine Details targets the smallest visible structures such as pores, individual hair strands, tiny speckles and microtexture. It is also the band most likely to reveal sensor noise, film grain, codec ringing or over-processed skin.

Medium Details affects coarser texture such as freckles, wrinkles, clusters of hair and surface structures with stronger edge definition. On products, clothing and many natural subjects, medium-scale detail can add useful crispness without lifting as much micro-noise as Fine.

Large Details affects the largest sharpenable structures and strong contrast edges. This band can reveal bright/dark halos quickly, so silhouettes, large text, facial contours and product edges deserve close inspection.

Underlying structure has no dedicated slider in this captured Inspector. It is the broad base structure relative to the three adjustable detail bands; do not invent an extra control for it.

Sharpen Chroma is a special-purpose control that Blackmagic recommends handling carefully. The documentation describes it as selectively sharpening chroma while leaving luma alone, so color-detail sharpening can be controlled separately from the main result.

High Sharpen Chroma can reveal colored edge fringes, chroma noise and compression artifacts. If luminance detail looks useful but saturated boundaries develop cyan, magenta or green contamination, reduce chroma contribution rather than weakening all sharpening.

Effect Mask is the optional blue input. It does not change the scale analysis or replace Detail Levels; it only decides where the already-calculated Sharpen result is allowed to contribute.

Image Input is the required image source. Sharpen emphasizes transitions already present in that branch. It cannot faithfully recreate information lost to severe defocus, motion blur, clipped texture or insufficient source resolution.

Node order matters. Sharpen before Resize and Sharpen after Resize operate on different pixel scales. For post-resize finishing, judging sharpness near the final raster size is usually more predictable than sharpening before multiple later resampling stages.

After denoise, Sharpen can restore perceived crispness but may also reveal residual noise patterns or plastic texture. Stabilize denoise first, then add the minimum useful sharpening and inspect playback rather than a single frame.

There is no universal rule that Fine should always be low on skin. A pore may be useful fine detail in a close-up while the same spatial scale can correspond to unwanted microstructure in a wider shot. The meaning of each band depends on framing and pixel size.

On graphics and titles, Sharpen can compensate for resampling softness, but high-contrast edges expose halos immediately. Inspect the alpha boundary as well as the interior of the graphic so sharpening does not create light/dark rims or transparency fringing.

With compressed footage, look for mosquito noise and ringing before sharpening. Sharpen does not semantically distinguish useful texture from compression artifacts; it enhances spatial structures that are already present.

A reliable diagnostic uses three areas: useful fine texture, a saturated color edge and a strong high-contrast edge. If the first looks better only at the cost of noise, color fringe or halo in the other two, the setup is too aggressive.

A strong production result is usually subtle. With the node bypassed the image should feel slightly softer, but the enabled version should not announce obvious digital sharpening. If the difference is dramatic, revisit Amount and Large Details.

Evaluate at 100% Viewer scale and at the real delivery resolution. Fit-to-window interpolation can hide micro-noise and halos or create its own impression of sharpness.

Always check playback. Fine texture, codec noise and edge ringing can look acceptable on a still frame yet shimmer or crawl across frames. Temporal stability is as important as static crispness.

Use SharpenEdges when the goal is edge-selected sharpening and UnsharpMask when a classic radius/gain/threshold workflow is more appropriate. Choose Sharpen when independent fine/medium/large structure control is the reason for the operation.
